Key Features of AGV Wireless Charging

AGV wireless charging transfers power between a stationary transmitter and a vehicle-mounted receiver without mating electrical charging contacts. Its practical benefits depend on the battery, docking arrangement and duty cycle.

Contactless charging and safety

The charging interface avoids wear and sparking associated with mating exposed electrical contacts. Current and voltage limits, temperature monitoring, receiver detection and safe fault shutdown still need to be specified. Wireless charging alone does not remove all electrical hazards or qualify equipment for a hazardous atmosphere.

Automatic opportunity charging

An AGV can return to a charging point automatically or recharge during loading, unloading and other planned stops. After the receiver enters the specified position window and the system checks are complete, charging can begin. It must stop safely before the vehicle leaves or when a fault occurs.

This is opportunity charging. Charging while the AGV moves is dynamic charging and requires equipment designed for that purpose, such as controlled transmitters along the route. A stationary charger should not be assumed to support it.

Environmental suitability

Sealed charging pads can reduce exposure of the charging interface to dust and moisture. Check the actual IP rating, temperature range, corrosion resistance, cleaning conditions and installation requirements. These properties vary between products and are not implied by the term “wireless”.

Battery and fleet controls

The BMS, vehicle controller and charger should coordinate the charging profile, permitted current, temperature limits and stop conditions. The fleet scheduler can use state of charge and task demand to select a charging point and avoid congestion. Compatibility with the battery chemistry and communication protocol must be confirmed.

Maintenance

Removing mating charging contacts reduces contact cleaning and replacement. Pads, cables, cooling, mounting hardware and protective functions still require inspection. Compare the maintenance plan with the operating environment and docking frequency rather than assuming the entire system is maintenance-free.

Station placement and charging distance

Charging points can be placed where vehicles already stop, provided there is enough space for safe access and the required power supply. A vehicle-mounted receiver allows the AGV to use compatible stations; it does not mean the vehicle can charge at an arbitrary location.

Air gap, lateral offset and angular tolerance are product-specific and can affect power, efficiency and heating. There is no universal 3 cm limit, 5 mm alignment requirement or 10 cm resonant charging distance for every AGV system. Select equipment using its validated operating envelope and test it on the actual vehicle.

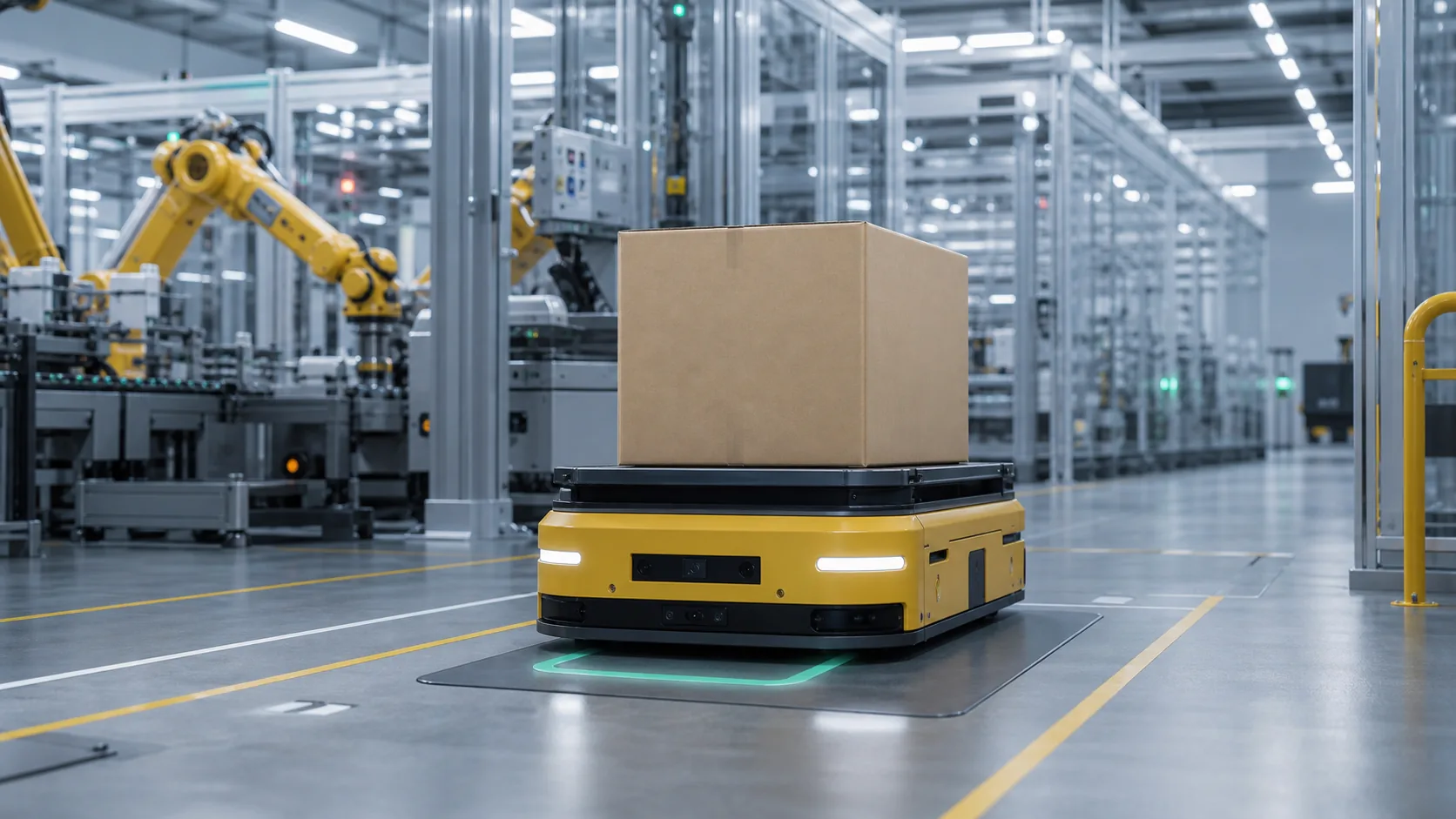

Key Features of AGV Wireless Charging
