Contact Charger

Contact Charging Series

Automatic contact chargers for AGV, mobile robots and industrial vehicles that require contact docking and high-power fast charging.

TWO WAYS TO CONNECT

Two mechanisms. Two docking approaches.

Compare the product photos, key details and automatic docking sequences.

Operation
Product photo
Telescopic contact charger with angled control panel, stack light and side-mounted charging head
Loading operation…
01Lateral docking

Telescopic Contact Charger

The charger sits beside the aisle. Once the robot stops and the positioning signal is confirmed, the charging head extends laterally to meet the robot’s side contact plate.

Extension travelMAX 200 mm
Docking methodLateral extension after stopping
Operation
Product photo

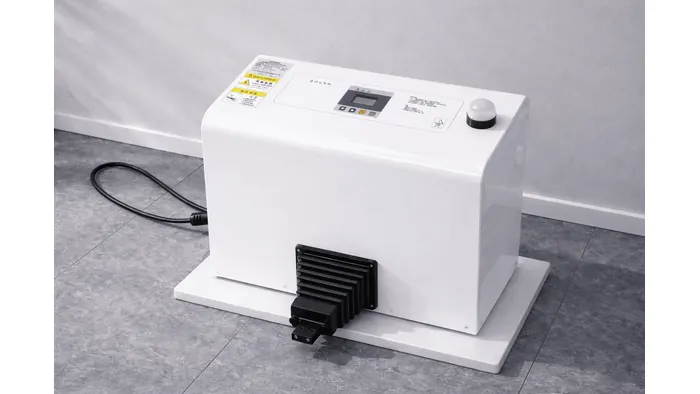

Low-profile compression contact charger with tapered bellows and front charging contacts
Loading operation…
02Compression docking

Compression Contact Charger

The robot approaches along its forward or reverse travel axis and gently compresses the contact mechanism to charge. As it backs away, the bellows mechanism rebounds to its standby position.

Compression travelMAX 50 mm
Docking methodApproach to compress; back away to release
LY Series

Automatic Contact Charger Selection Table

Select a model by nominal voltage and target power. Final selection should be confirmed with battery and BMS parameters.
